Ups Electrical Wiring Diagram
Manual ups wiring diagram with change over switch system. Related electrical wiring tutorial.
How To Connect Automatic Ups Inverter To The Home Supply System
Automatic ups system wiring circuit diagram for home or office new design with one live wire also read.
Ups electrical wiring diagram. Collection of ups maintenance bypass switch wiring diagram. A wiring diagram is a simplified standard pictorial depiction of an electrical circuit. You can easily make a ups uninterruptible power supply at your home.

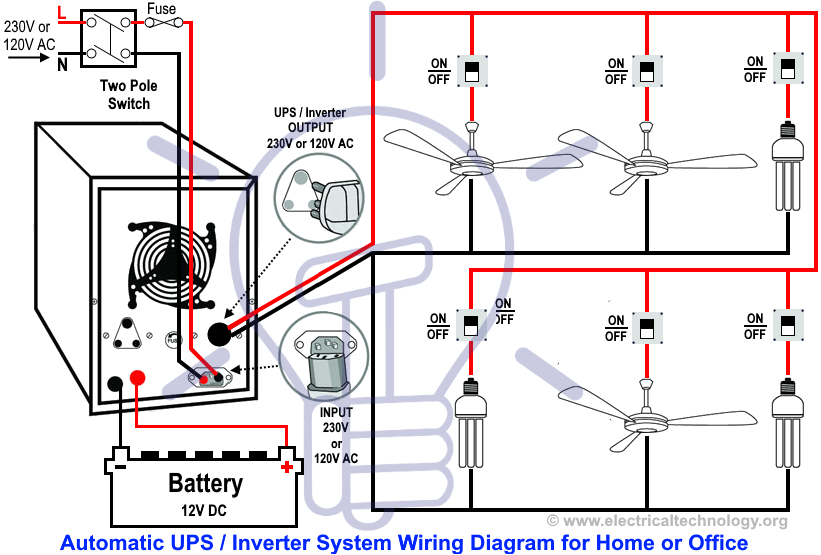

Here a circuit diagram of ups is given. It is a very simple ups circuit diagram. In the following ups inverter wiring diagram it clearly shows that when the utility power is not available the connected ceiling fan two light bulbs and a 2 pin socket will be operated through batteries and ups as the output live phase wire of the ups inverter is only connected to them and the rest will be off due to the absence of main power.
A wiring diagram typically provides information regarding the relative position and also plan of tools and also terminals on the tools in order to help in building or servicing the tool. The circuit drawn pertains to a regular industrial ups uninterruptible power supply which shows how the batteries take control during an outage in electrical supply or variation beyond the normal limits of the voltage line without disruption on the operation providing a steady regulated output 5 volts by lm7805 and an unregulated supply 12 volts. Automatic ups system wiring diagram in case of some items depends on ups and rest depends on main power at office or home.
From this ups you can get two power supply of different voltage one is 12v unregulated dc power supply and another is 5v regulated dc power supply. Now according to the below ups connection diagram connect an extra wire phase to those appliances where we have already connected phase and neutral wires from power house db ie two wire as phase live as shown in the below fig. Ups inverter wiring diagram with auto manual changeover switch system.
It shows the elements of the circuit as simplified forms and the power as well as signal connections in between the gadgets.
Wiring Diagrams For Hardwire Ups Battery Backup Power Inc
Ups Inverter Wiring Diagram For One Room Office Electrical Online 4u Electrical Tutorials House Wiring Circuit Diagram Ups System
Automatic And Manual Ups System Wiring For Home Or Office With Circuit Diagram
Automatic Ups Inverter Wiring Connection Diagram To The Home Ups System Electrical Circuit Diagram Electrical Connection
Wiring Diagrams For Hardwire Ups Battery Backup Power Inc
Automatic And Manual Ups System Wiring For Home Or Office With Circuit Diagram
Circuit Diagram Of Ups Or Uninterruptible Power Supply Etechnog
4 Simple Uninterruptible Power Supply Ups Circuits Explored Homemade Circuit Projects
Ups Uninterruptible Power Supply Circuit Diagram
Manual Auto Ups Inverter Wiring Diagram With Changeover Switch Diagram Electrical Wiring Diagram Electrical Diagram
Uninterruptible Power Supply Ups Basic Circuit Diagram Eeweb Community
Ups Power Supply Circuit Diagram Wiring Library
Automatic And Manual Ups System Wiring For Home Or Office With Circuit Diagram
Ups Connection Youtube
Invertor For Home Wiring Diagram Wiring Library
Zb 5570 Battery Charger Transformer Wiring Diagram Schematic Wiring
348126c General Electric Refrigerator Wiring Diagrams Wiring Library
Simple Ups Circuit Diagram Eleccircuit Com
Ups Circuit Diagrams 1000w Detailed Wiring Diagram
How To Connect A Ups In Home Wiring Quora
Circuit Diagram Of The Proposed Online Ups System Download Scientific Diagram
1
Online Double Conversion Ups Diagram Wiring Diagram
Power Supply Unit Ups Wiring Diagram Power Converters Block Diagram Png 1320x539px Power Supply Unit Area
Block Diagram Of Ups Wiring Diagram
2fc6 15 Kva Ups Electrical Wiring Diagram Wiring Resources
Lighting Circuits Connections For Interior Electrical Installations 3
600 Watt Uninterruptible Power Supply Power Supply Circuits
Shows A Detailed Circuit Diagram Of The Ups Reported In 6 The Download Scientific Diagram
How To Connect Batteries In Parallel With Power Inverter Or Ups Wiring Diagrams
15 Kva Ups Electrical Wiring Diagram Wiring Diagram
Ups Uninterruptible Power Supply Circuit Diagram
Dc Power Enclosures For Nfpa 1221 In Building Standards 12v Dc 24v Dc 48v Dc 110v Ac Din Rail Dc Ups And Battery Detection Newmar Powering The Network
Invertor For Home Wiring Diagram Wiring Library
File Standby Ups Diagram Png Wikimedia Commons
Wiring Diagram Ups Diagram Base Website Diagram Ups Venndiagramcalculator Ciriaco Sforza De
Dk 1941 Diagram Further Ups Online Diagram On Ups Battery Backup Ac Wiring Wiring Diagram
4 Simple Uninterruptible Power Supply Ups Circuits Explored Homemade Circuit Projects
3060 15 Kva Ups Electrical Wiring Diagram Wiring Resources
1
Wiring Diagram Floor Software
Https Www Reynoldsonline Com Assets Documents Cms En New 3 2018 Pdf
Block Diagram Of Ups Wiring Diagram
Invertor For Home Wiring Diagram Wiring Library
Https Www Eaton Com Content Dam Eaton Products Design Guides Consultant Audience Cag Documents From Wcm Uninterruptible Power Supplies Pdf
Ups Uninterruptible Power Supply Circuit Diagram
How To Wire Solar Panel Batteries In Series For 24v System
Dc Power Enclosures For Nfpa 1221 In Building Standards 12v Dc 24v Dc 48v Dc 110v Ac Din Rail Dc Ups And Battery Detection Newmar Powering The Network
Vehicle Power Diagram Diagram Base Website Power Diagram Eyediagramblank Bancadelvecchio It
15 Kva Ups Electrical Wiring Diagram Wiring Diagram
Transformerless Ups Circuit For Computers Cpu Homemade Circuit Projects
Ups Schematic Circuit Diagram Dc To Ac
Al 4501 Circuit Diagram Together With Ups Schematic Circuit Diagram Also Ups Download Diagram
4 Simple Uninterruptible Power Supply Ups Circuits Explored Homemade Circuit Projects
Zn 3562 Circuit Diagram Ups Schematic Circuit Diagram Ups Schematic Circuit Free Diagram
Ups Uninterruptible Power Supply Circuit Diagram
Online Double Conversion Ups Diagram Wiring Diagram
Http Www Eaton Com Ecm Groups Public Pub Eaton Corp Documents Content Pct 1548681 Pdf
Wiring Diagram Ups Diagram Base Website Diagram Ups Venndiagramcalculator Ciriaco Sforza De
Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gctocvfoonxac8b0zrbdhr 94ro89uzay5wrhy6jshtiw7ngelme Usqp Cau
True Bypass Switch Wiring Diagram Diagram Base Website Wiring Diagram Venndiagrampowerpoint Grandevillestudio Fr

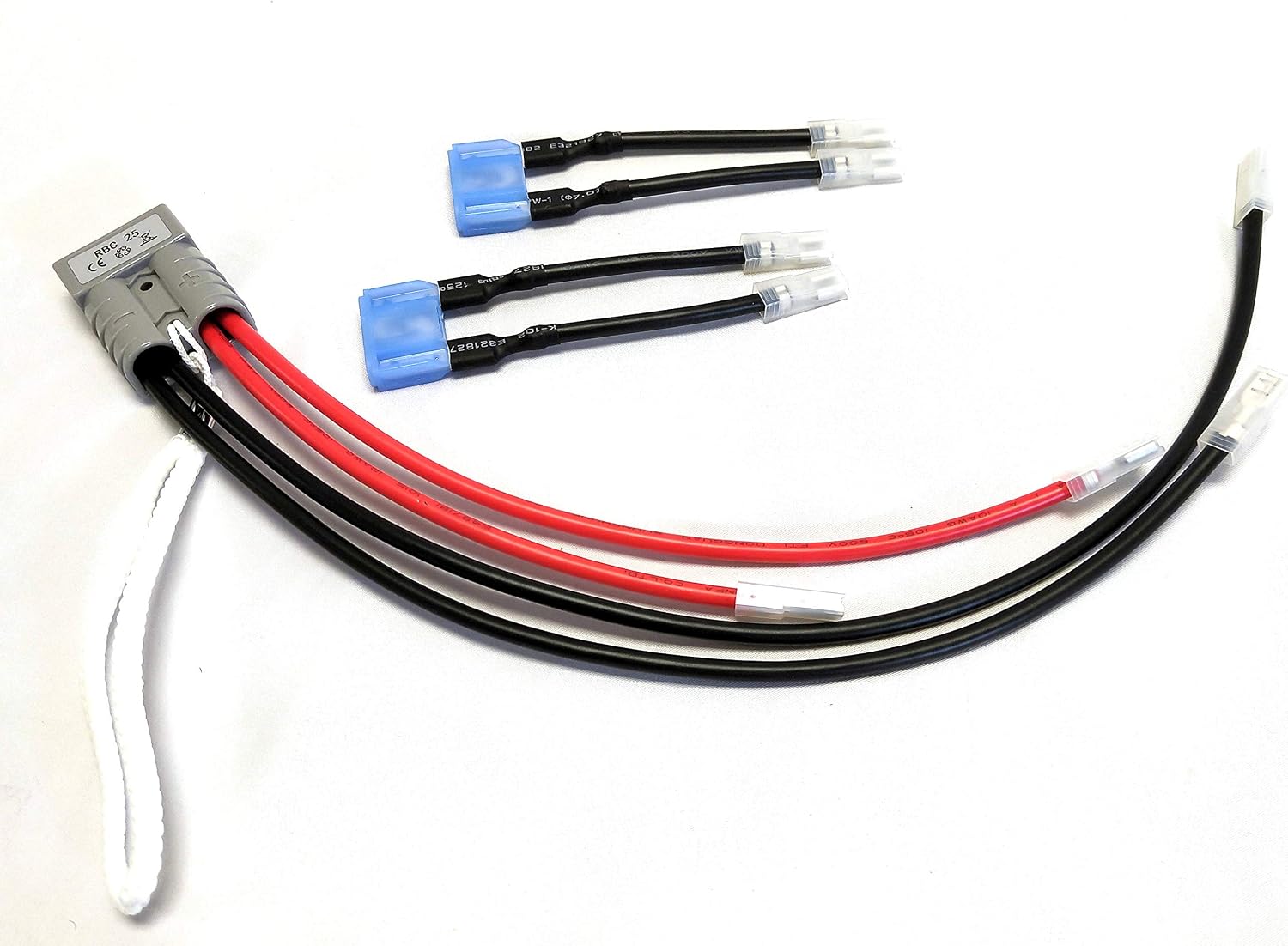

Amazon Com Sps Brand Cable For Rbc25 Ups Battery Catridge Electronics
